Home > Dragon Additional or Replacement Flap

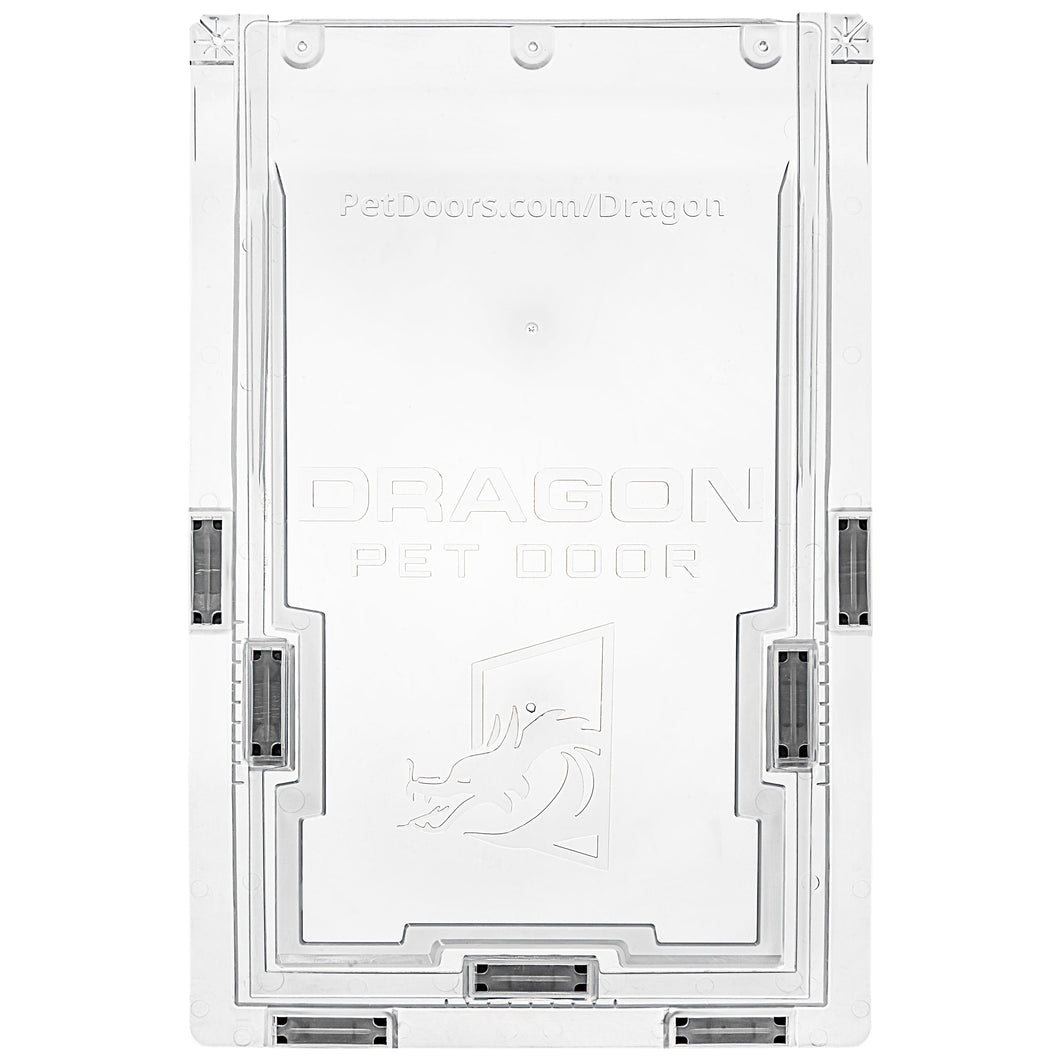

Dragon Additional or Replacement Flap

Dragon Additional or Replacement Flap

Dragon Additional or Replacement Flap

$14.99
$14.99
$0.00
Sold out
Shipping calculated at checkout.
Info
Info

  • Sold individually, one (1) flap will contain a center and U-shaped piece
  • Replace worn or broken flaps, or upgrade single-flap doors to double-flap for improved insulation
  • Translucent, polyolefin elastomer flap for easy pet use
  • Quick installation without removing pet door frame
  • Available in small, medium, and large sizes
Dragon Additional or Replacement Flap
Small Edit
Dragon Additional or Replacement Flap

Product Details

The Dragon Replacement Flap is the perfect solution for maintaining your Dragon Pet Door's peak performance without replacing the entire assembly. This versatile replacement flap is designed for all Dragon pet door models and available in Medium and Large sizes, providing a seamless upgrade for single-flap doors to a double-flap configuration for improved insulation.

Crafted from a durable and comfortable translucent polyolefin elastomer material, this flap ensures ease of use for your pets, while the sturdy, two-piece design includes all required hardware for a hassle-free installation process. With the Dragon Replacement Flap, there's no need to remove the pet door frame, making it a quick and convenient upgrade for your home.

The Dragon Replacement Flap is compatible with various installation types, including regular doors, wall mounts, aluminum sliding doors, vinyl sliding doors, sash windows, vinyl windows, and horizontal windows.

Whether you're replacing a worn-out flap or converting your single flap pet door to a double flap, this replacement flap is a practical and valuable addition to your Dragon Pet Door.

Features:

  • Sturdy, two-piece flap design with all required hardware included
  • Enhances insulation by upgrading to double-flap configuration
  • Translucent flap material is both durable and comfortable for pets
  • Easy installation process for a hassle-free experience
  • Versatile compatibility with various installation types

Size Chart

  • Small 8-1/8"w x 11-1/2"h
  • Medium 9-1/2"w x 15-1/4"h
  • Large 12-1/8"w x 19"h

Flap Width:

8-1/8"w

The length of your pet door flap.
flap width
Flap height

Flap height:

11-1/2"h

How tall your pet door flap height is.

Flap Width:

9-1/2"w

The length of your pet door flap.
flap width
flap height

Flap height:

15-1/4"h

How tall your pet door flap height is.

Flap Width:

12-1/8"w

The length of your pet door flap.
flap width
flap height

Flap height:

19"h

How tall your pet door flap height is.
Flap SizeFlap Dimensions
Small8-1/8"w x 11-1/2"h
Medium9-1/2"w x 15-1/4"h
Large12-1/8"w x 19"h

To correctly select your replacement flap size, we recommend measuring your maximum frame width or height and match it to a size in this chart.

Installation Instructions

Replacing the Flap Installing Additional Flap

Replacing the Flap

Installation icon Difficulty Easy
Installation icon Steps 05
Installation icon Time Required 0.5 Hours
Installation icon Sections 02
Installation icon Flags 01

Parts

  • 1 Main Inner Flap - Interior piece with the Dragon logo
  • 1 Outer Flap - Exterior piece shaped like the letter “U”
  • 5 Thread-Forming Screws - ½” long screws
  • 3-4 Frame Strike Plates - ½” x 1 ¾” steel plates with adhesive backing (small flaps come with 3 plates; medium/large flaps come with 4)

Tools

  • Phillips Head Screwdriver

Step 1 Remove the Outer Flap

  • Remove the two screws holding in the U-shaped outer flap from the frame with a Phillips-head screwdriver.
  • If the screw head gets damaged, you can replace it with a new screw from the kit later.
  • Remove the old U-shaped flap. Discard damaged screws as needed.

Step 2 Remove the Inner Flap

  • Remove the three screws holding the main inner flap.
  • Remove the main inner flap from the frame.

Step 3 Remove the Old Magnets

  • Separate the magnets from the old flaps.
  • The magnets can be discarded in the trash.
  • The flap is recyclable. Contact your local waste management and ask if they can recycle polyolefin elastomers or flexible polyethylene.

Step 4 Install the New Inner Flap

  • Install the main inner flap onto the frame with the three center screws. The logo should face you, away from the frame.
  • Take care not to overtighten. Tighten just enough for the screw, the flap, and the frame to all be flush with each other. The flap material will start to deform if over tightened.

Step 5 Install the New Outer Flap

  • Install the U-shaped outer flap onto the frame with the two remaining screws.
  • The magnets should face towards the main flap and the frame.
  • The corners of the breakaway channel around the screw will bend outwards when overtightening begins.
  • If the flaps don't sit quite right, you can try massaging them into place.

Installing an Additional Flap

Installation icon Difficulty Easy
Installation icon Steps 04
Installation icon Time Required 0.5 Hours
Installation icon Sections 01
Installation icon Flags 00

Parts

  • 1 Main Inner Flap - Interior piece with the Dragon logo
  • 1 Outer Flap - Exterior piece shaped like the letter “U”
  • 5 Thread-Forming Screws - ½” long screws
  • 3-4 Frame Strike Plates - ½” x 1 ¾” steel plates with adhesive backing (small flaps come with 3 plates; medium/large flaps come with 4)

Tools

  • Phillips Head Screwdriver

Watch the same process for the Door and Wall Mount.

Step 1 Install the Main Inner Flap

  • Install the main inner flap onto the frame with the three center screws. The logo should face you, away from the frame.
  • Take care not to overtighten. Tighten just enough for the screw, the flap, and the frame to all be flush with each other.
  • The flap material will start to deform when overtightening begins.

Step 2 Install the Outer U-Shaped Flap

  • Install the U-shaped outer flap onto the frame with the two remaining screws.
  • The magnets should face towards the main flap and the frame.
  • The corners of the breakaway channel around the screw will bend outwards when overtightening begins.
  • If the flaps don't sit quite right, you can try massaging them into place.

Step 3 Adhere the First Strike Plate

  • Remove the paper liner from one of the frame strike plates.
  • Careful, the adhesive is very difficult to remove once it sticks somewhere.
  • Locate one of the four rectangular recesses in the empty frame where the strike plate will go.
  • You will want to to place the plate in the center of the recess lengthwise, and towards the frame opening short-wise.

Step 4 Adhere the Remaining Strike Plates

  • Press only one end of the strike plate down with your other hand, ensuring it stays straight.
  • Run your finger across it, applying pressure, to ensure it has a good hold.
  • Repeat for the other three strike plates.

FAQ

Warranty

Dragon Pet Doors One Year Warranty

Dragon Pet Doors have a one-year warranty for normal wear & tear and manufacturing defects.
